Instructions

Quick Start

Your frist 5 heat tokens are only 5 dollars.

First register a new account.
Next login to your new account.
In the Heated Boot Android application locate the serial number.
Go to the cart page.
In the Serial field enter the serial.
Click, Buy Now.
After your purchase is complete you will receive an email.
The email will contain a QRCode, from the Heated Boot Android application scan the QRCode.

Technical Overview

When your heated ski boot has been used and recharged 5 times, any further heating will be disabled.

USB Cable Connection

The circuit board in your boots tracks the number of tokens remaining. When the boots are plugged in for recharging, the remaining tokens are reduced by one.

Charging

If the battery is not fully charged, the battery will begin charging when the USB cable is connected to a USB charger or USB device port.
While charging the LEDs will sequence Green, Yellow and Red.
When the battery is fully charged, the LEDs will stop sequencing and the Green LED will turn On.
Depending on the discharge state of the battery it can take up to 3 hours to recharge the battery.
The USB charger or USB port used must be rated 5V and 500 mA.

LEDs

There are 3 colored indicator LEDs on the heated ski boot – Green, Yellow and Red. These indicators can either indicate a heat level or used as a status indicator.

Plus Button

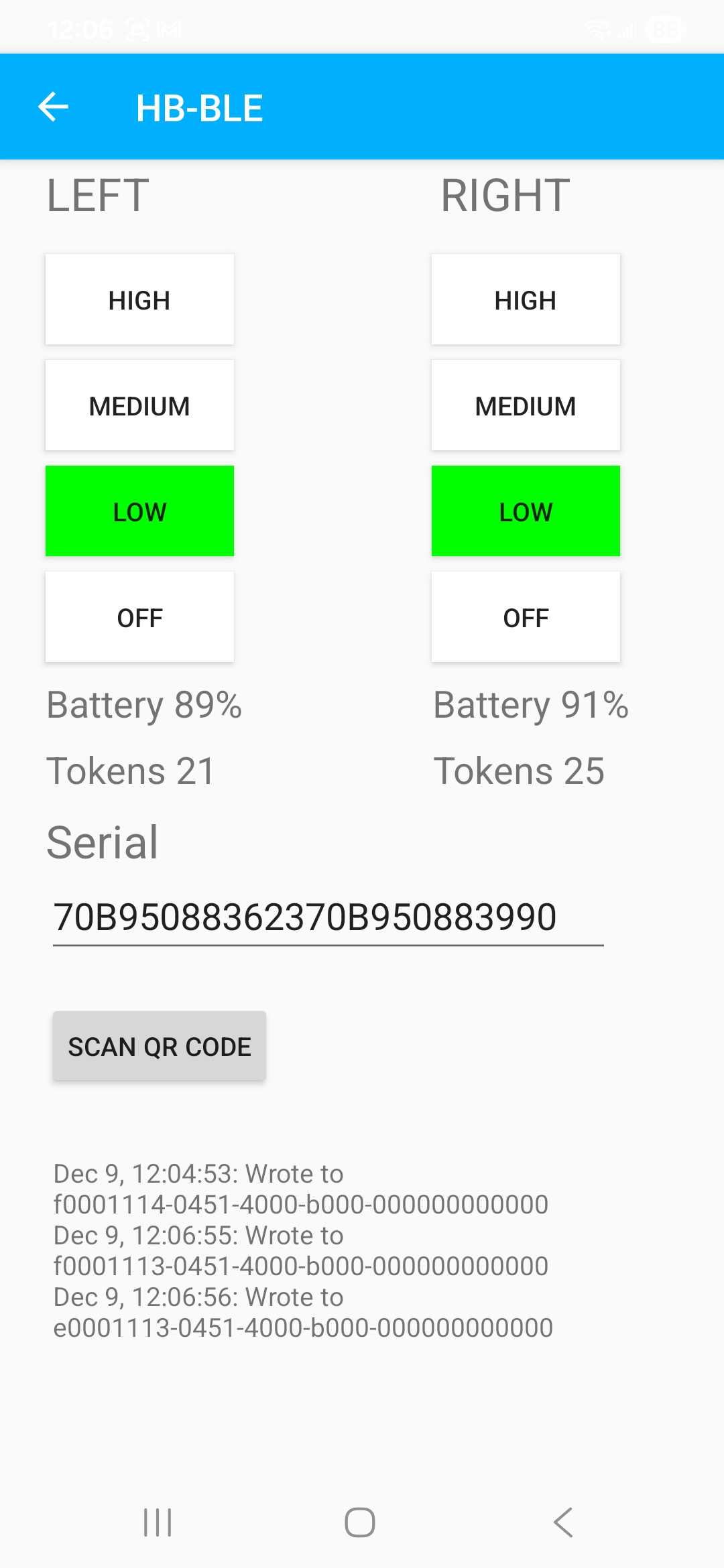

Low Heat

Pressing the PLUS button will set the heat ski boot to a LOW heat setting.

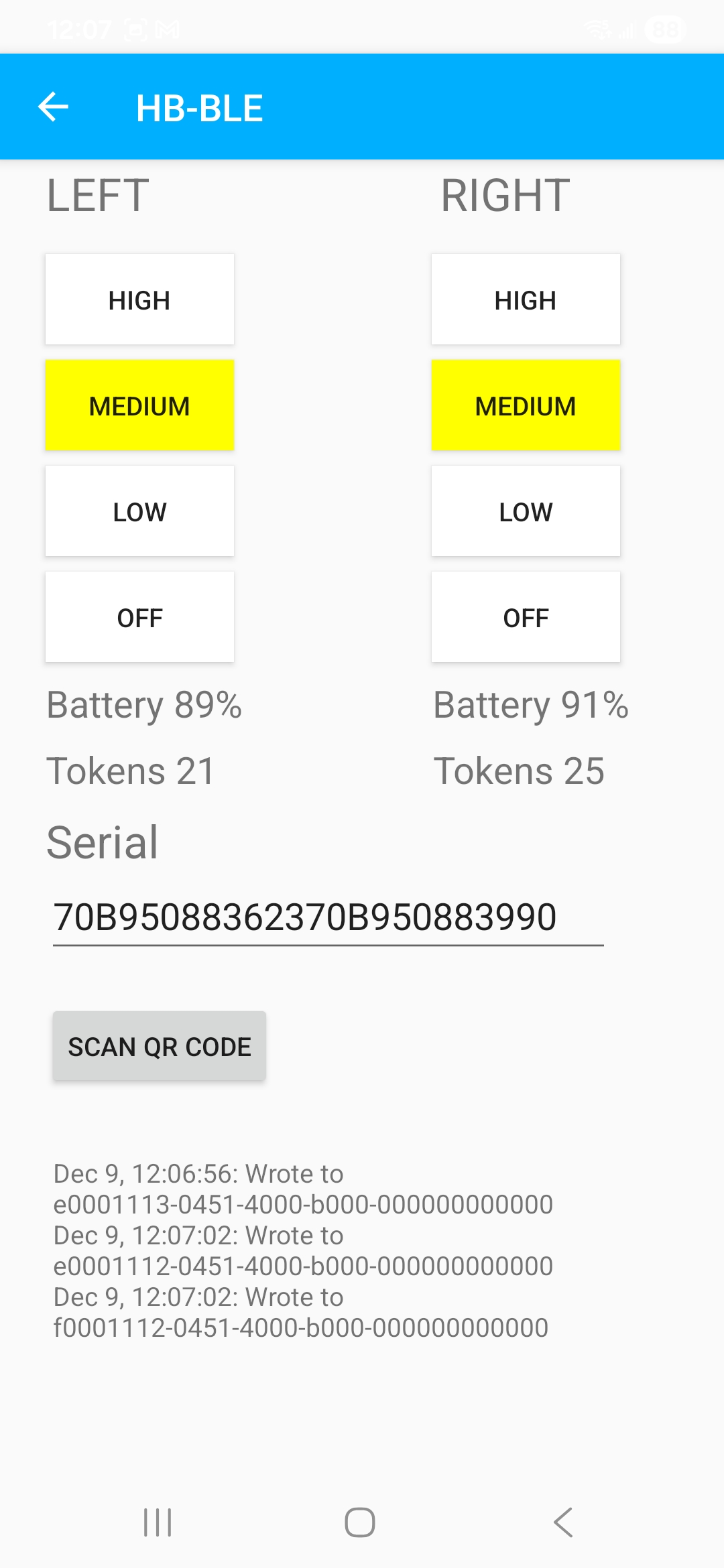

Medium Heat

Pressing it again will place it into a MEDIUM heat setting.

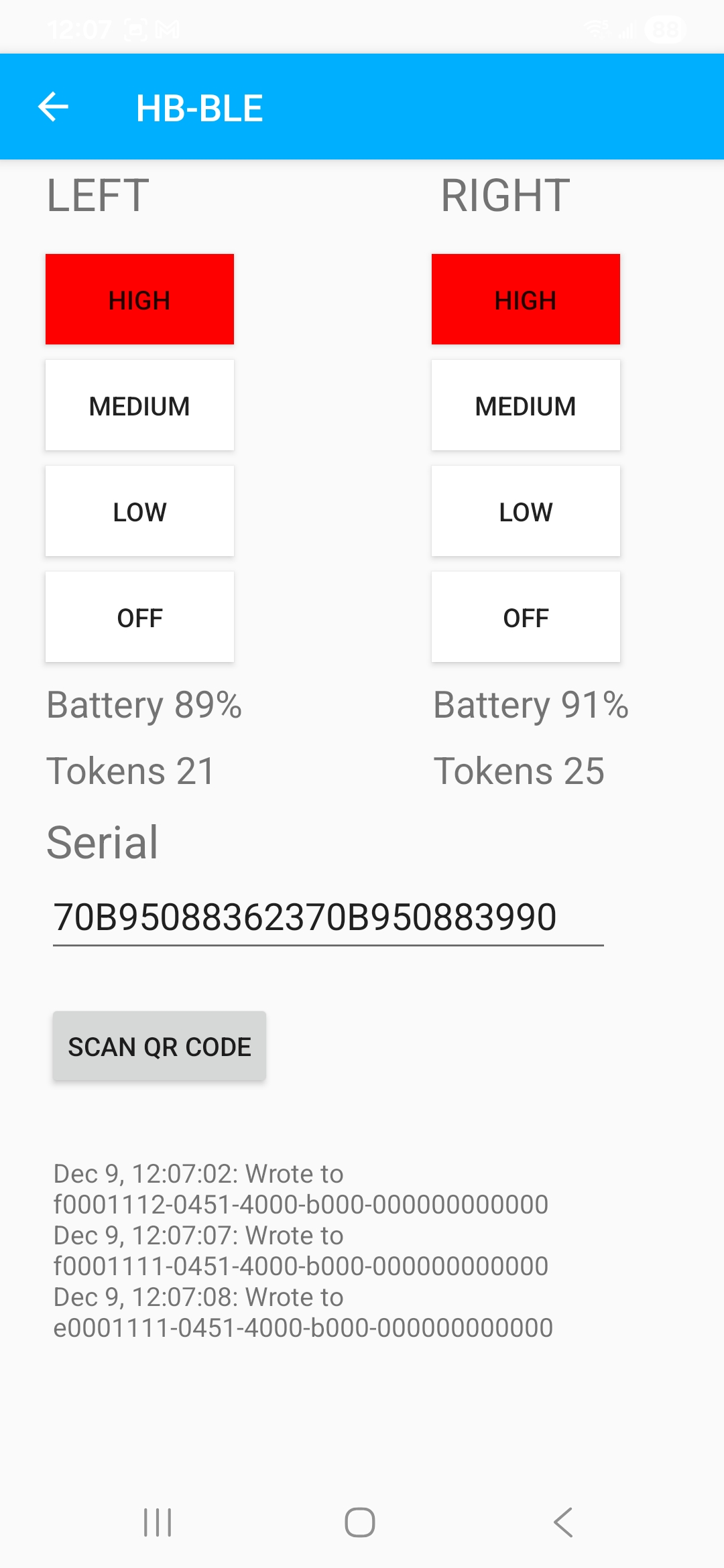

High Heat

Pressing it once again will place it into a HIGH heat setting.

If the available token count is zero, then heating is disabled, and the Red LED will flash one time when either the Plus or Minus buttons are pressed. Heat is not available until more heat tokens are purchased and added to the heated ski boot.

Minus - Button

Pressing the MINUS button will lower the ski boot heat setting.
If the heated ski boot setting is currently HIGH, it will lower the heat setting to MEDIUM, and pressing it once again will set it to the LOW heat setting

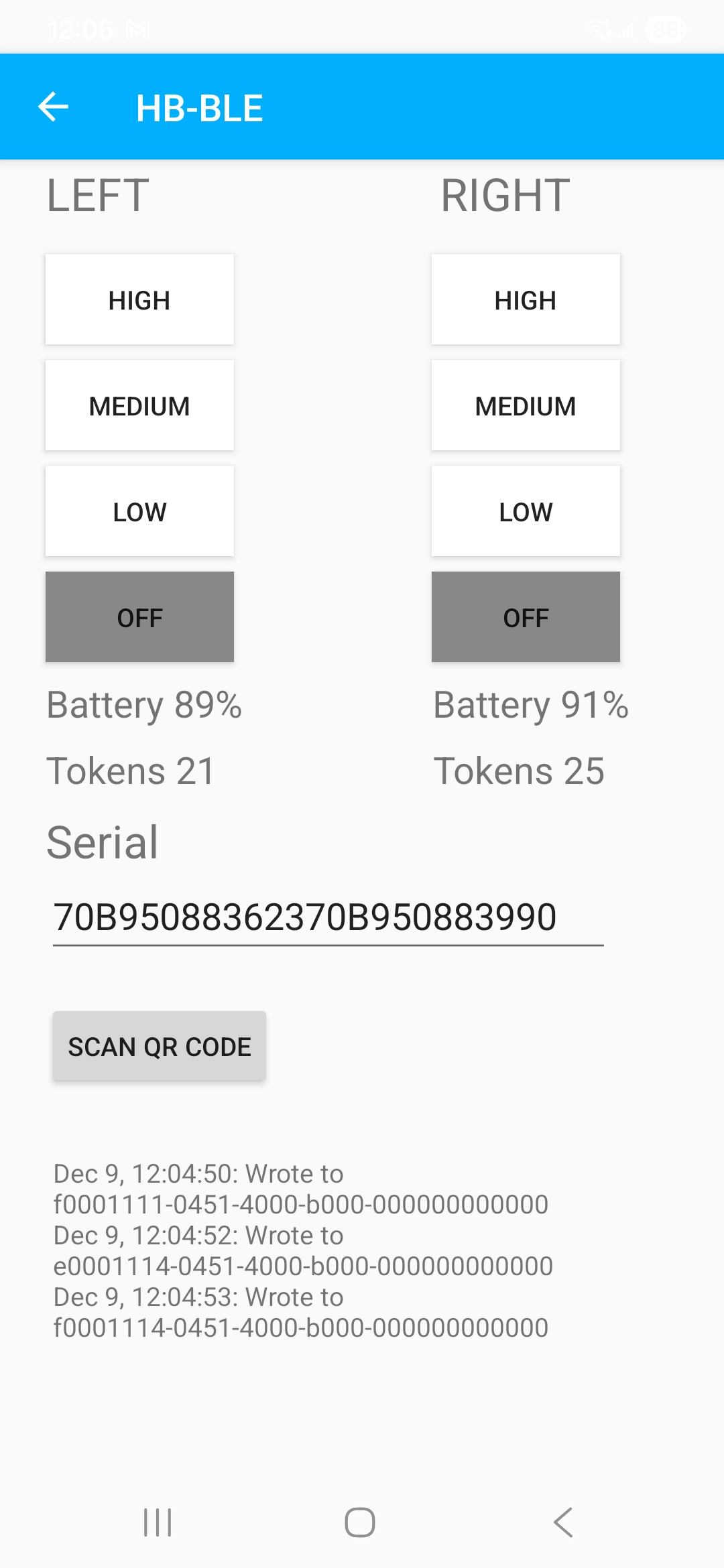

Pressing it again will turn the heat OFF.
If the available token count is zero, then heating is disabled, and the Red LED will flash one time.
Heating is not available until more heat tokens are purchased from the website and then added to the heated skiboot.
